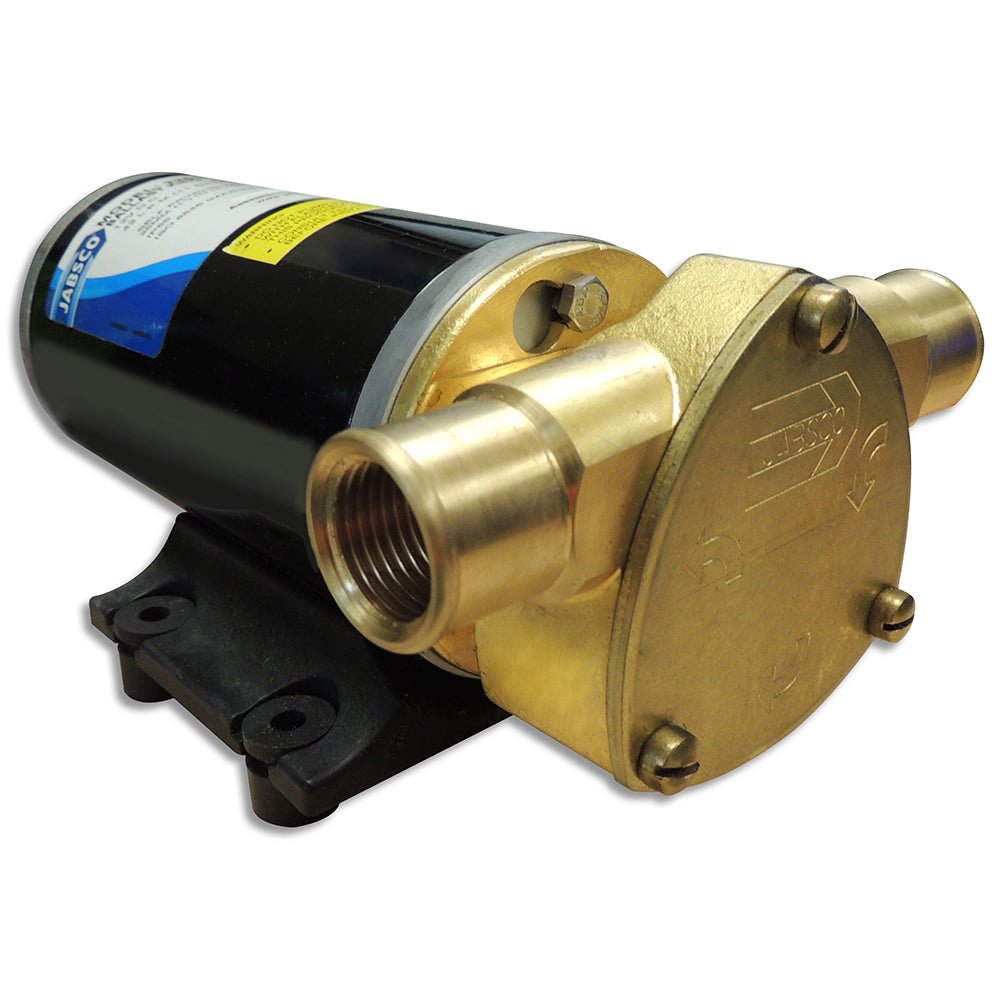

The Ballast King Bronze DC Pump is a high-performance solution designed specifically for wakeboard and ski boats. Crafted from durable bronze, this pump ensures reliable operation in demanding marine environments, allowing you to efficiently manage your boat’s ballast system with ease.
Key Features
- High Flow Rate: Delivers 15 US gallons per minute (57 Litres/min), enabling quick ballast adjustments.
- Self-Priming Capability: Self-priming from dry up to 1.2 meters (4 feet), ensuring reliable startup even in challenging conditions.
- Efficient Ballast Management: Adds approximately 125lbs (56kgs) of ballast per minute, allowing rapid stabilization of your vessel.
- Reversible Operation: Capable of both filling and emptying ballast tanks without the need for a reversing switch.
- Durable Design: Simple construction minimizes wear and tear, extending the pump’s lifespan.
- Marine-Grade Certification: Complies with ISO 8846 MARINE standards, providing reliable ignition protection.
Applications
The Ballast King is engineered to seamlessly integrate with Wakeboard Liquid Ballast Tanks, providing efficient water pumping capabilities. Whether you need to increase ballast for enhanced stability or reduce it for improved speed, this pump handles both tasks effortlessly. With a flow rate of 15 gallons per minute, most ballast tanks can be filled or emptied in approximately five minutes. Additionally, the built-in Run-Dry Protection Device (patent pending) automatically shuts off the pump to prevent impeller damage if the pump is left on after the ballast tank is empty.
Specifications
| Attribute | Details |
|---|---|
| Flow Rate | 15 US gallons/min (57 Litres/min) |
| Self-Priming | Up to 1.2 meters (4 feet) |
| Ballast Addition | Approx. 125lbs (56kgs) per minute |
| Reversibility | Reversible for both filling and emptying tanks |
| Body Materials | Bronze |
| Impeller | Jabsco Neoprene Compound |
| Seal | Lip Type |
| Ports | 1/2″ Internal Pipe Threads, 1″ External Hose Barb |
| Voltage | 12 Vdc |
| Amp Draw | 19 amps |
| Fuse Size | 25 amps |
| Motor Type | Permanent Magnet Type, Fully Enclosed Stainless Steel Shaft, Ball Type Shaft Bearing, Reversible |
| Duty Cycle | 30 Minutes Max |
| Dimensions | 3 5/8 x 8 x 4 3/4 inches |
Installation and Maintenance
Installing the Ballast King Bronze DC Pump is straightforward, thanks to its user-friendly design and compatible connectors. Ensure proper mounting in a dry and accessible location on your vessel. Regular maintenance includes inspecting connections, cleaning the impeller area, and checking for any signs of wear to guarantee optimal performance and longevity.
Why Choose Ballast King?
For marine enthusiasts seeking a dependable ballast management system, the Ballast King Bronze DC Pump stands out with its robust construction, high efficiency, and smart protection features. Its ability to handle rapid ballast changes enhances your boating experience by providing stability and performance control whenever needed.
